Artificial Target Generator

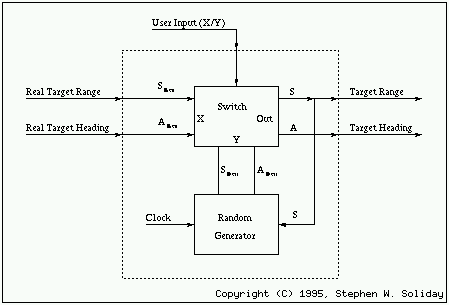

Figure 13.1: Artificial Target Generator
Return to the Overall Diagram


The first major component of the Behavioral-Navigation-System is the target generator. This system is the principle system for simulation of wandering behavior. By providing a randomly positioned artificial target to the navigation system, and then moving that artificial target to a new random location, a wandering type pattern of movement will be exhibited by the vehicle.

The target generator is made up of two subsystems. The top box in Figure 13.1 is simply a user defined switch. The switch chooses between an artificial target and a real target. The bottom box in the figure, is the random target generator. The purpose of this subsystem is to create a set of coordinates for an artificial target.

< previous | contents | next >


This module is part of a robotics simulation that was demonstrated in a Master's Thesis entitled:

A Subsystem Approach to Developing a Behavior Based Hybrid Navigation System for Autonomous Vehicles

The thesis was defended by Stephen W. Soliday, Dec 1995, at the Department of Electrical Engineering at North Carolina A&T State University.
